South Florida summers are no joke, and when your cooling quits, knowing the parts of an air conditioner helps you speak the same language as your technician and sometimes catch a small problem before it becomes a big one. Below, Natal Air Conditioning breaks down the major AC components, how they work together, and the warning signs that tell you it’s time to schedule service.

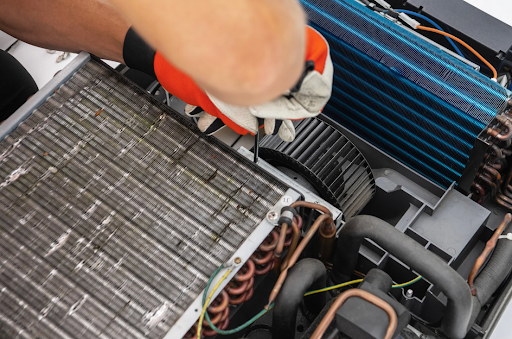

The Four Core Parts of an AC Unit
1. Evaporator Coil – Indoor Heat Absorber
Hidden inside the air handler (the technical name for the inside AC unit), the evaporator coil is a network of copper or aluminum tubing. Refrigerant arrives here cold and low-pressure. As warm, humid indoor air passes across the coil, heat and moisture transfer to the refrigerant, dropping your supply-air temperature and reducing humidity.
Watch for: ice on the coil, weak airflow, or musty odors often caused by a dirty filter or low refrigerant.
2. Compressor – The System’s Heart
Located in the outdoor cabinet, the compressor pumps refrigerant through the entire system. It squeezes low-pressure vapor into a high-pressure, high-temperature state so heat can be shed outdoors. Because it’s the hardest-working part, it also draws the most electricity and is the priciest to replace.
Watch for: humming, tripped breakers, or warm air at the vents. Compressor failure often means discussing replacement options.
3. Condenser Coil & Fan – Outdoor Heat Rejector
After compression, hot refrigerant flows into the condenser coil. The large fan on top pulls outside air through thin metal fins, carrying heat away. The refrigerant cools, condenses into liquid, and heads back inside to start the cycle again.
Watch for: foliage crowding the unit, bent fins, or a coil caked with salt and sand.
4. Expansion Valve (or Metering Device) – The Pressure Dropper
Just before refrigerant re-enters the evaporator, it passes through the expansion valve. Pressure drops suddenly, the liquid flashes into a cold mist, and the refrigerant is ready to absorb indoor heat again. A stuck valve can starve the coil or flood it, causing temperature swings and efficiency loss.
Watch for: inconsistent cooling or coil icing even with a clean filter.
What Is the Inside AC Unit Called?
If you’ve ever Googled “what is the inside AC unit called?”, the answer is the air handler. Think of it as the indoor air-moving center that houses:
- Blower motor & wheel: push air through ducts.
- Evaporator coil: absorbs heat.
- Filter rack: holds that all-important air filter.
- Control board & safeties: manage fan speeds and protect against overflow or freezing.
Because it runs nearly year-round in South Florida, dust, moisture, and microbial growth can build up quickly. Replace filters every 30–90 days and schedule a professional coil cleaning at least once a year to keep airflow strong and indoor air healthy.
Other Important AC Components to Know About
Beyond the core parts of your air conditioner, there are several supporting components that help the system run efficiently and safely. Here’s a breakdown of some essential AC components you should be familiar with and how to care for them:
- Refrigerant Line Set: These insulated copper pipes connect the air handler and condenser, carrying refrigerant between the indoor and outdoor units. To prevent leaks and energy loss, make sure the insulation is intact and keep an eye out for oily spots that may indicate a refrigerant leak.
- Thermostat or Smart Controller: This is the brain of your AC system. It monitors the indoor temperature and sends on/off signals to maintain your desired comfort level. Calibrate it annually for accuracy and consider upgrading to a smart thermostat to improve efficiency and enable remote control.
- Drain Pan and Condensate Line: As your system removes humidity from the air, moisture collects in a drain pan and is funneled outside via a condensate line. To avoid water damage or microbial growth, flush the line with vinegar at the start of each season to prevent clogs.
- Electrical Disconnect and Contactors: These components control and manage the flow of electricity to your system. They provide safe shutdown options and are essential for system performance. Schedule yearly maintenance to ensure all electrical connections are clean, tight, and functioning properly.
- Safety Switches (Float, High-Pressure, Low-Temperature): These built-in protections automatically shut the system down when water backs up, refrigerant pressures get too high, or coil temperatures drop too low. If one of these switches trips, don’t ignore it or bypass it. Call a professional to find and fix the root cause.
How All AC Components Work Together
- Compression – Refrigerant vapor is pressurized and heated in the compressor.
- Condensation – Hot refrigerant releases its heat outdoors via the condenser coil, turning into a high-pressure liquid.
- Expansion – The expansion valve drops pressure, creating a cold, low-pressure mix.
- Evaporation – Indoors, the cold refrigerant absorbs heat and humidity through the evaporator coil.
- Air Circulation – The blower sends cooled air through supply ducts while warmer return air is drawn back, and the cycle repeats.
Remember: air conditioners don’t create cold. They move heat from inside to outside.
Warning Signs a Part May Be Failing
- Warm air or high humidity indoors → possible low refrigerant, dirty coil, or failing compressor.
- Water around the air handler → clogged condensate line or frozen coil thawing.
- Short cycling (frequent starts & stops) → dirty filter, bad thermostat, or oversized system.
- Unusual noises → rattling fan blade, squealing blower belt, or buzzing contactor.
- Spiking energy bills → restricted airflow, dirty condenser coil, or dying compressor.
Catching these issues early saves money and prevents full system breakdowns. Natal Air Conditioning offers services across Broward, Palm Beach, and Miami-Dade counties.
Maintenance Tips to Protect Every AC Part
- Change filters monthly during heavy-use months.
- Clear vegetation at least 2 feet around the condenser for proper airflow.
- Rinse the condenser fins gently after turning off the power first.
- Pour a cup of vinegar into the condensate line every quarter to deter algae.
- Schedule a professional tune-up each spring: coil cleaning, refrigerant check, electrical tightening, and thermostat calibration.
Consistent maintenance can extend your system’s life by 3–5 years and keep your energy bills in check.
Repair vs. Replace: Making the Right Call
- Age: Units over 12–15 years old often run on dated, less efficient technology.
- Refrigerant type: If your system still uses phased-out R-22, repairs become costly.
- Repair frequency: Multiple major fixes in two seasons signal end-of-life.
- Energy efficiency: Jumping from an older 10 SEER to a 16-plus SEER system can cut cooling costs up to 40 percent.
Natal A/C provides honest assessments, side-by-side cost comparisons, and a 5 percent price-beat guarantee on new installations so you make a choice that fits your comfort and budget.
Get in Touch with Natal AC
Knowing the parts of an AC unit, from the air handler inside to the condenser outside, empowers you to recognize problems early, ask informed questions, and schedule preventive care that keeps your home cool all year. If any of your AC components need expert attention, or you’d like a free system evaluation, call Natal Air Conditioning today. We’ve been South Florida’s trusted cooling specialists for more than 30 years, and we’re ready to keep your comfort system running like new.
